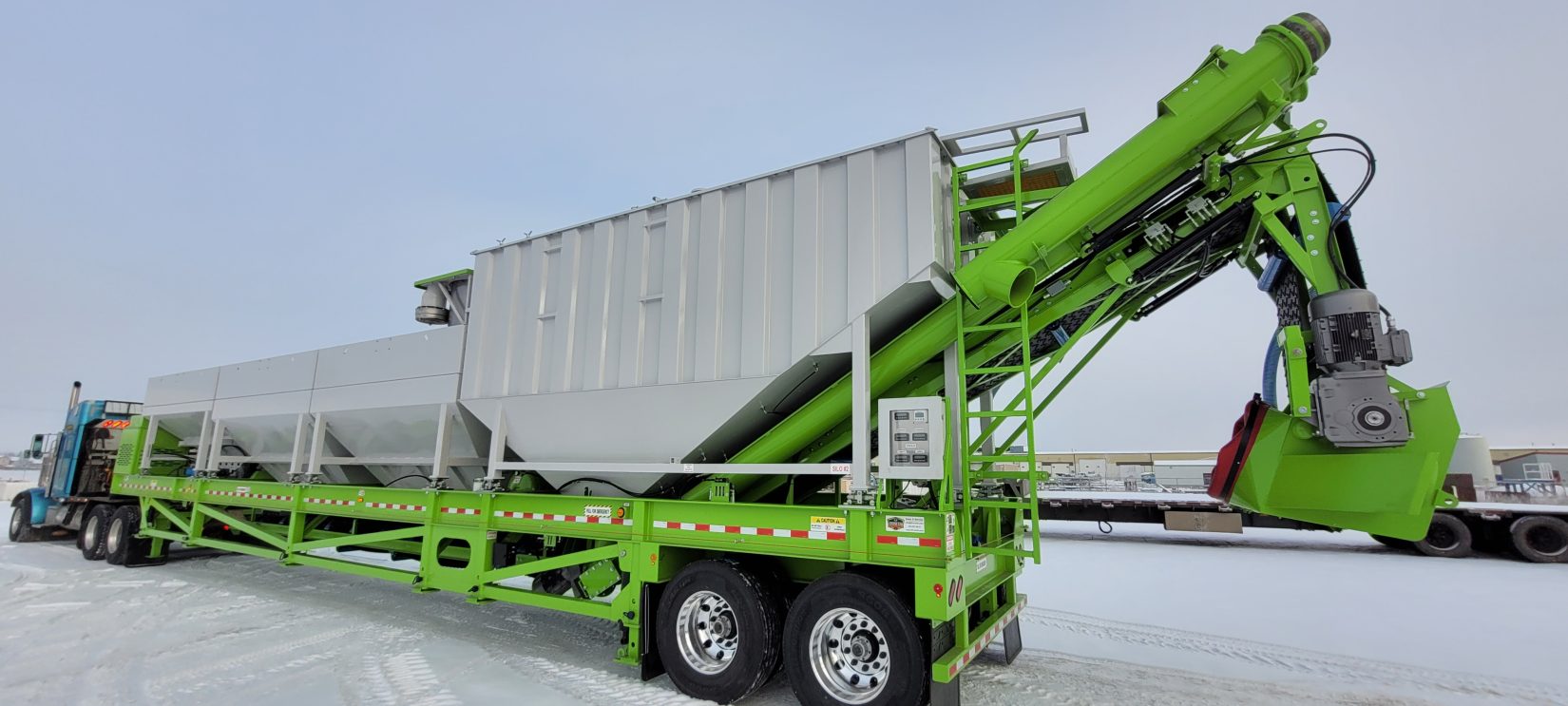

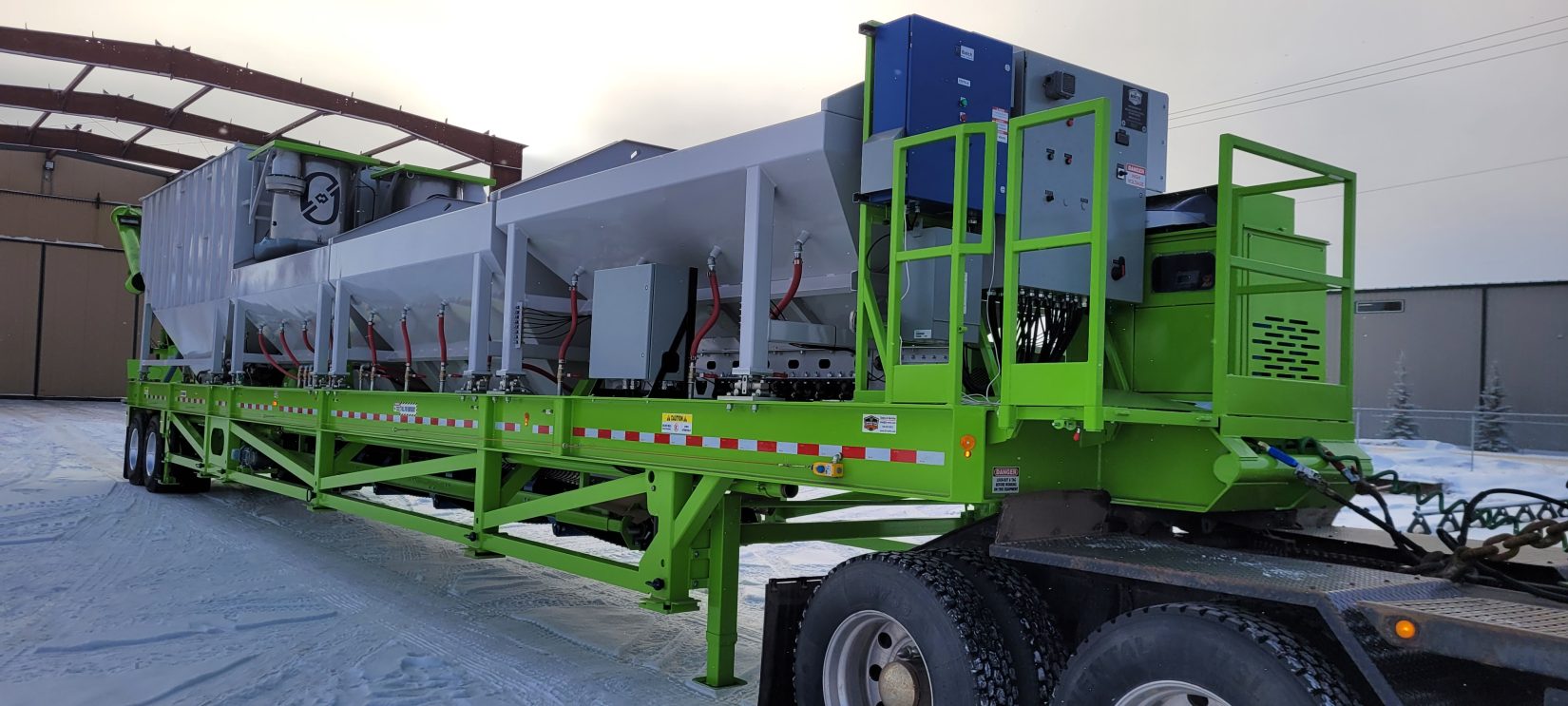

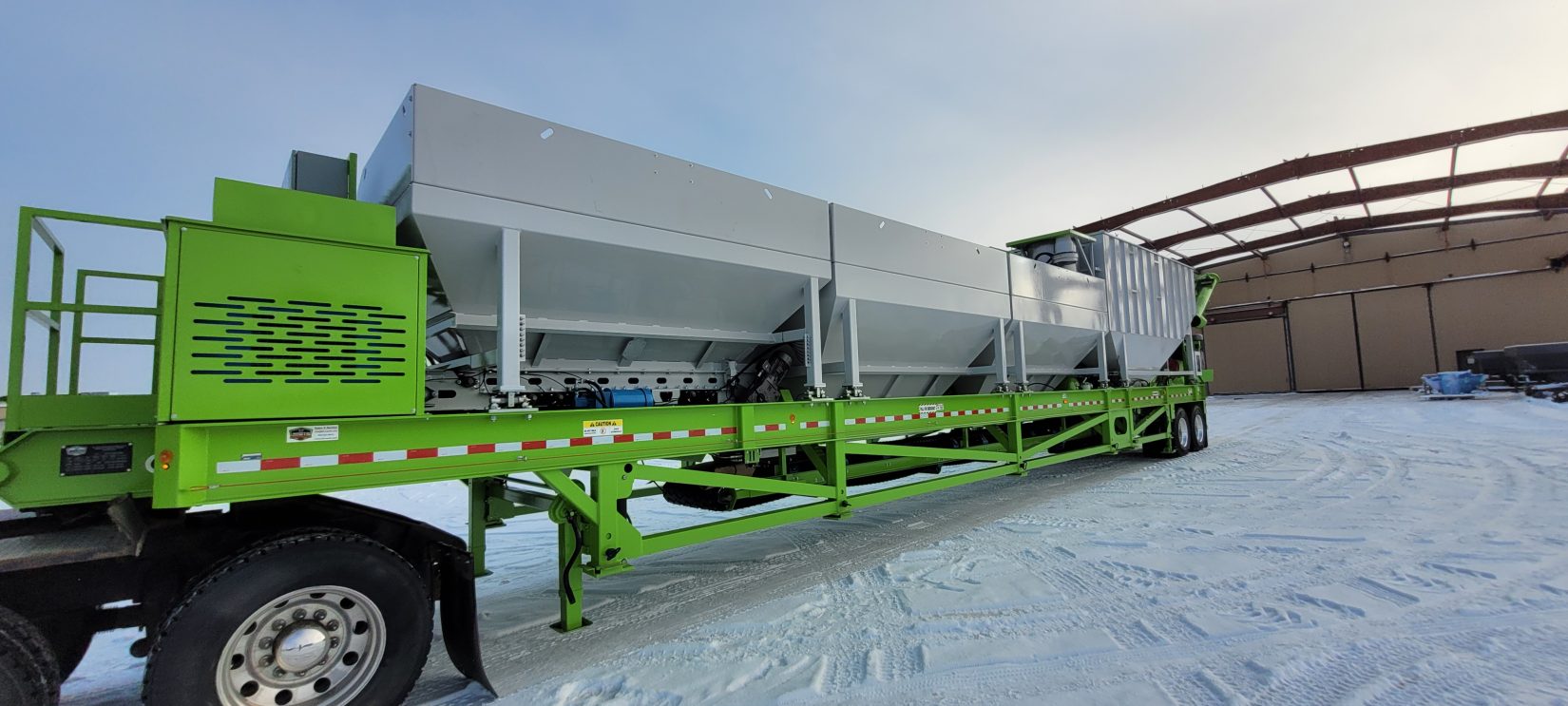

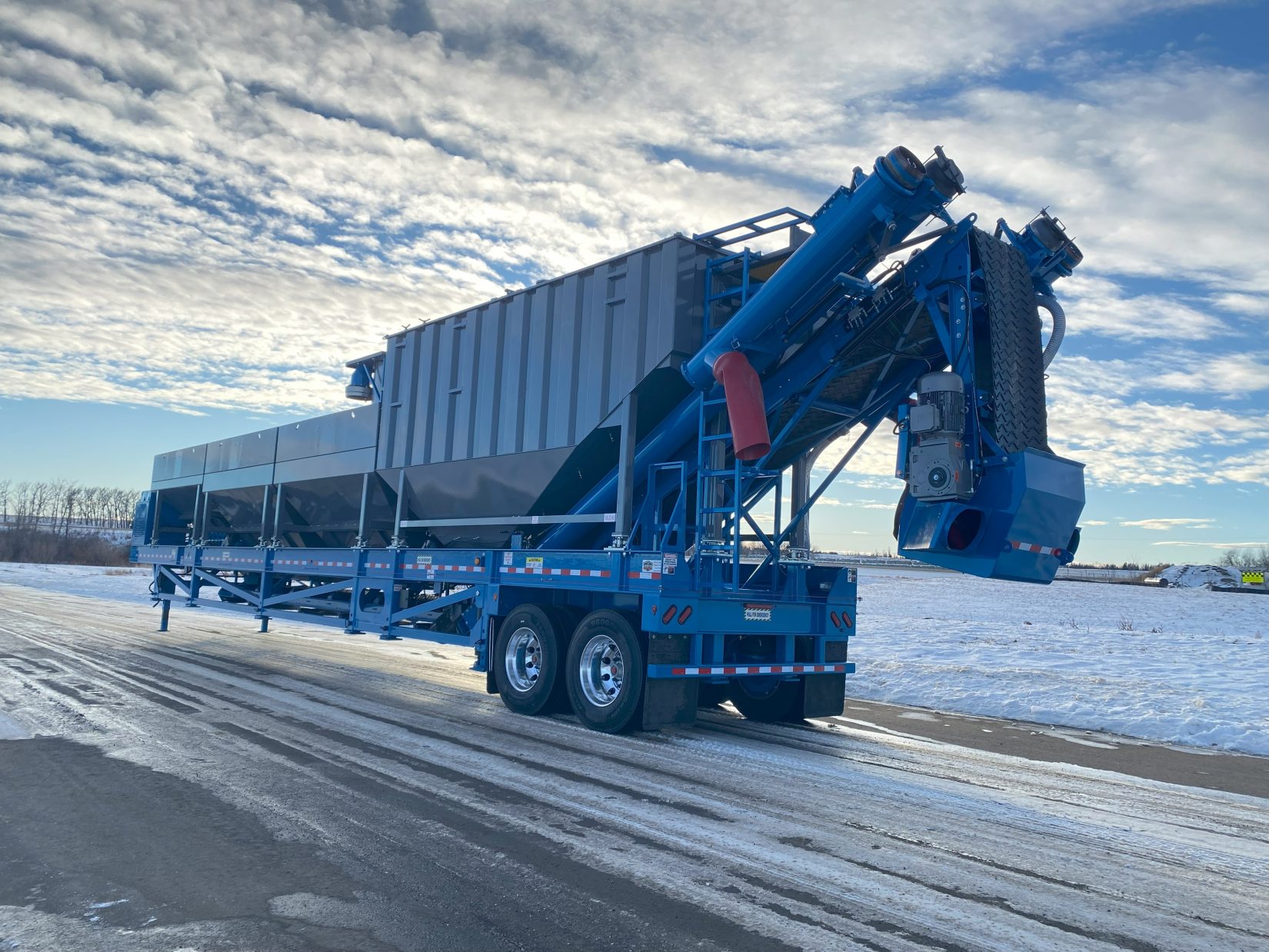

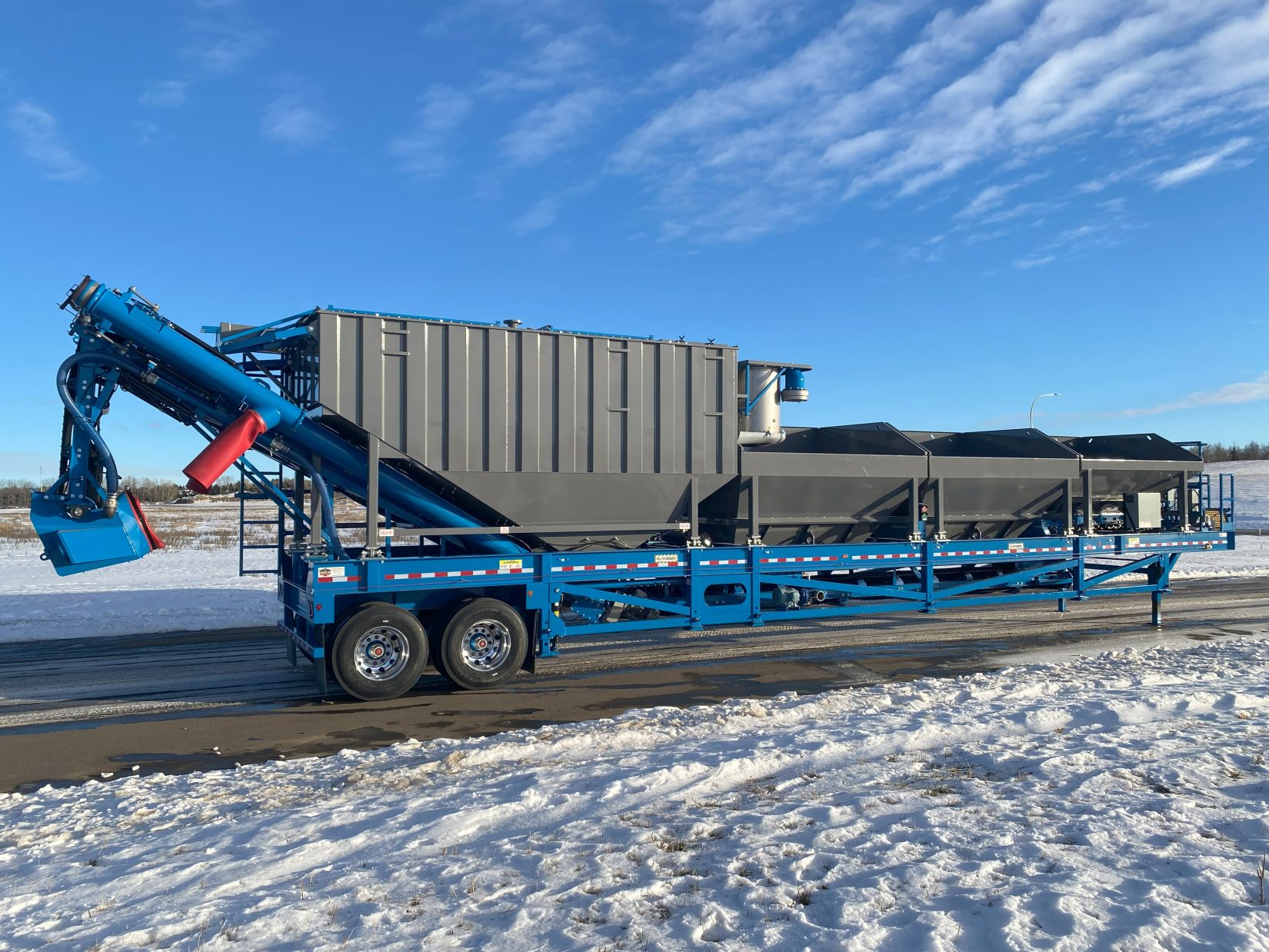

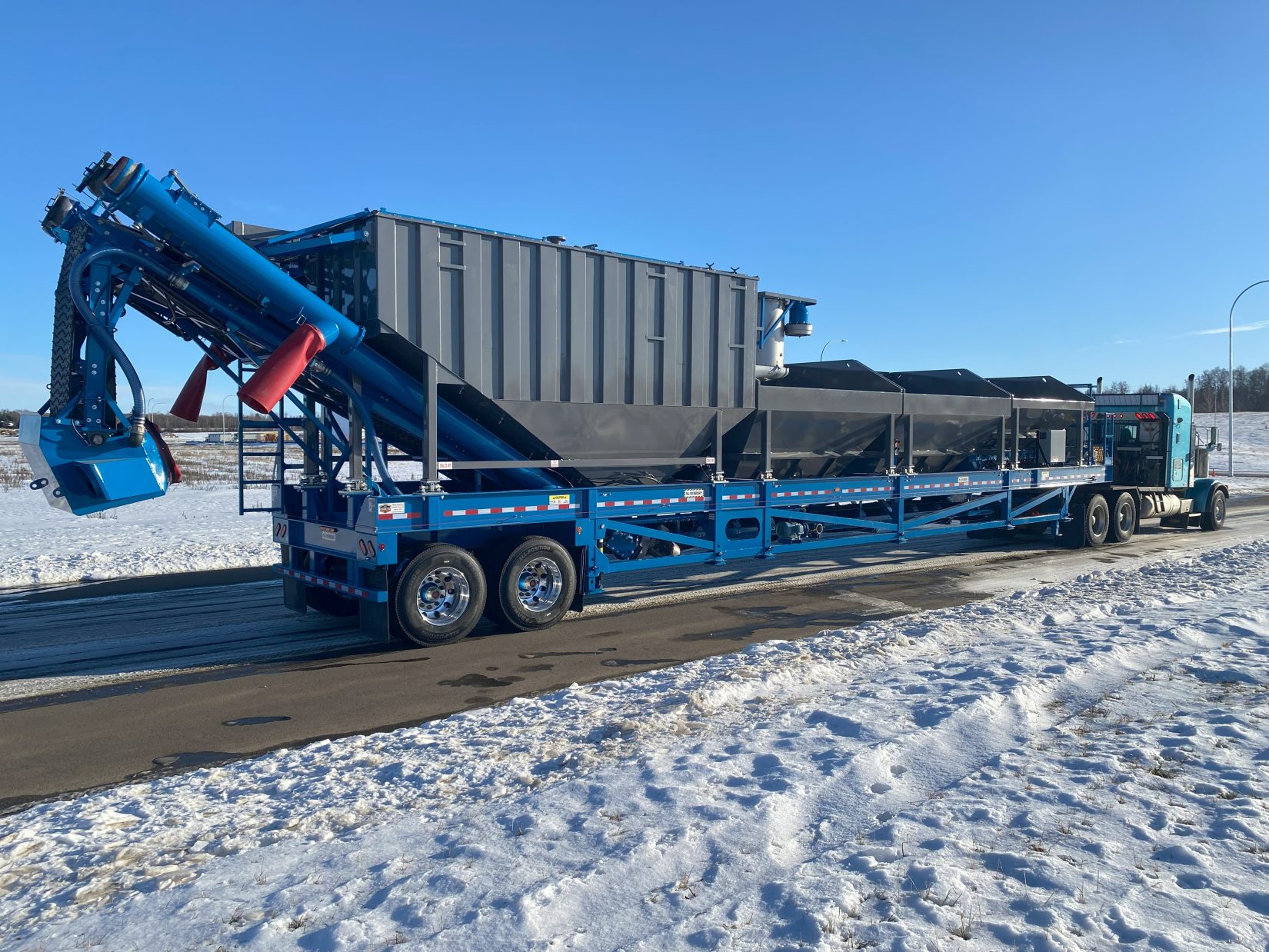

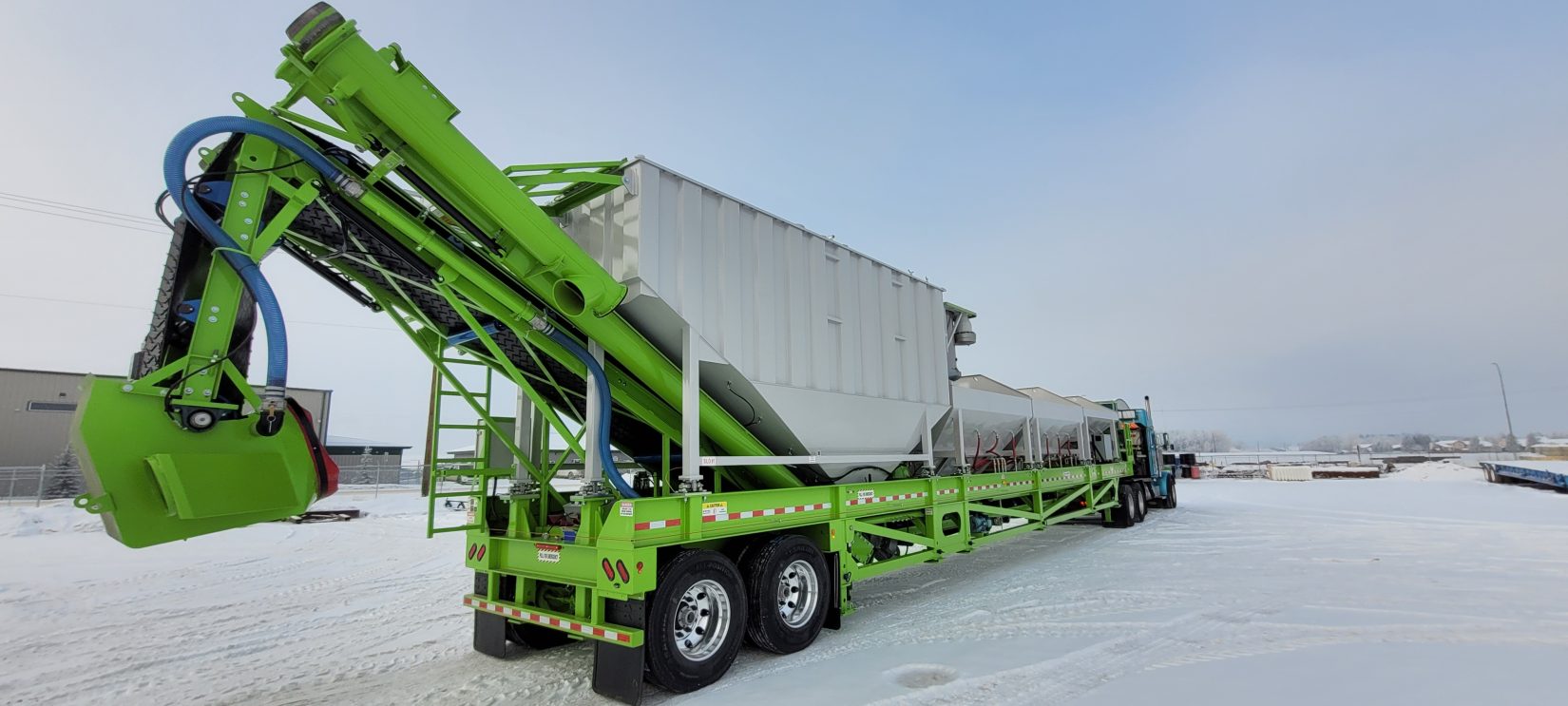

Concrete Batch Plants

Aggregate Bin no1:

• Approx capacity: 24ton (420 cubic ft)
• Four (4) NTEP certified loadcells
• Clam gate
• Bin vibrator pad with vibrator

Aggregate Bin no2:

• Approx capacity: 24ton (420 cubic ft)
• Four (4) NTEP certified loadcells
• Clam gate
• Bin vibrator pad with vibrator

Aggregate Bin no3:

• Approx capacity: 22ton (385 cubic ft)
• Four (4) NTEP certified loadcells
• Live bottom conveyor 24″
• Bin vibrator pad

Dual Cement Silo:

• Two (2) – 440cubic feet each, approx. 18 tons each
• Two (2) 10” augers with 20 HP drives
• Eight (8) NTEP certified compression loadcells
• Two (2) 4” cement fill lines

Delivery Conveyor

• Chevron 30ʺ wide belting
• Electric 15 HP motor with gearbox
• Belt scraper (brush style) installed

Air Compressor System:

• 10 HP direct drive screw compressor
• Insulated enclosure and air dryer

Chassis:

• Dual axle, air ride suspension
• Tires: 11R, 22.5
• Air brakes / maxi pots,
• D.O.T. Standard lighting
• Anti lock brake system

Water System:

• 3” water meter with actuated valve
• 3″ pump and electric motor

Automation

Your choice of automated batch control system.
